WH-HX-01 dryer

1. Product description

WH-HX-01 oven is an independent development of Suzhou Wenhao Microfluidic Technology Co., Ltd. . It has independent intellectual property rights. The inner liner and outer shell are made of metal, with no deformation at high temperatures, and the temperature of the fan blade is uniform. The PID temperature control system can measure and control the temperature automatically, which has the characteristics of fast temperature rising speed, uniform temperature, and high-temperature control precision. In addition to the essential functions of the oven, the instrument is fitted with a multi-layer bracket which can be placed at random height in the cavity, for example, for making multi-chip paper chips.

2. Technical parameters

Temperature control range: room temperature ~ 200 °C

Temperature control accuracy: ≤ ± 1 °C

Temperature uniformity: ≤ ± 5%

Temperature holding time: up to 9 hours

Rack size: 240 × 287 mm

Parameter setting: touch screen setting parameter

Temperature control form: PID Temperature Control System

Power input: AC220V ± 10V, 50HZ

Power: 1000W

Weight: 28.5 kg

Dimensions: 432(L) * 375(W) * 446(h) mm

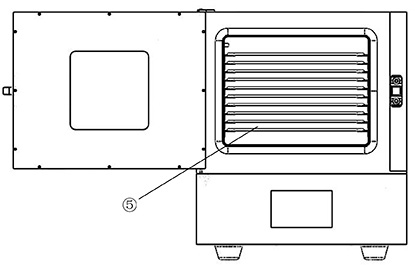

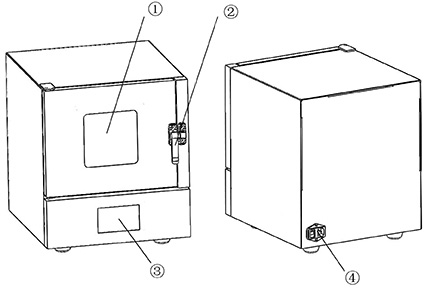

3.Character diagrams

① observation window ②door handle ③ touch screen ④ socket switch ⑤shelf

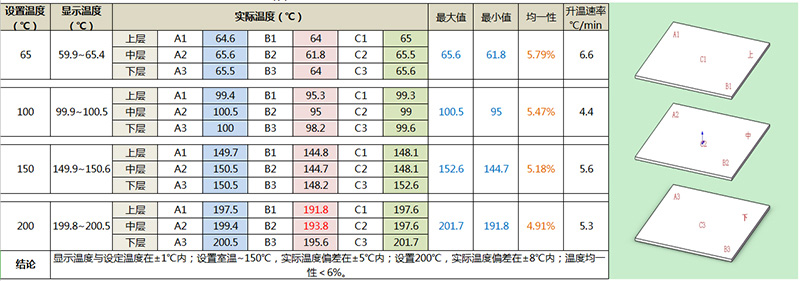

4.Small oven temperature test report
