Water – in – oil drop glass chip

There are standard and customized glass chips for oil-in-water droplets. By controlling the flow velocity of water-phase and oil-phase in the chip, droplets of different particle sizes are formed, and the size distribution of the droplets is relatively uniform. Can be based on customer requirements, accept the formulation of droplet chip, the following is the standard droplet chip produced droplet diagram.

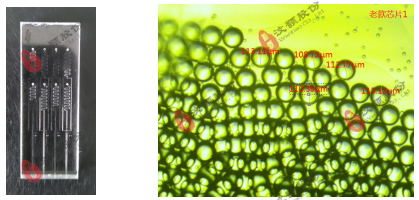

(1) Droplet parameters: water phase 3mL/H, oil phase 1mL/H; Droplet size 110 m.

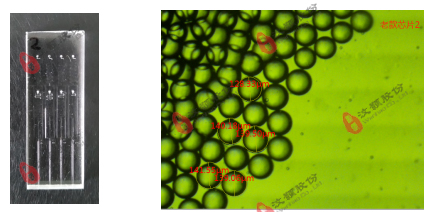

(2) Droplet parameters: water phase 3mL/H, oil phase 1mL/H; Droplet diameter 140 m.

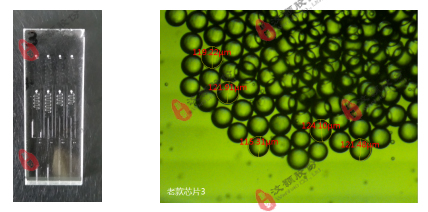

(3) Droplet parameters: water phase 3mL/H, oil phase 1mL/H; Droplet size 120 m.
