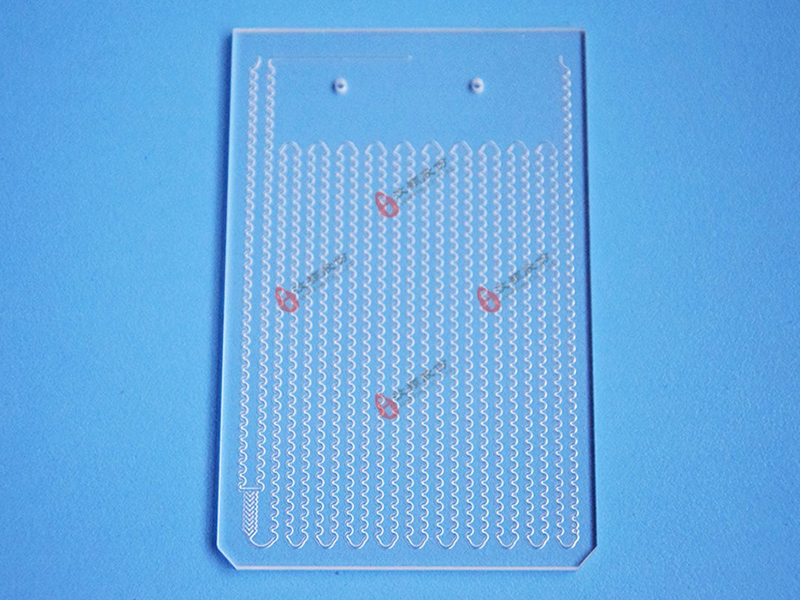

SU684-M process enhanced microreactor

Product specification:

Dimension: 68 × 95 × 4mm;

Material: Shorter B270 glass;


Holding capacity: 0.51 ml;

Temperature range:-25 °C-195 °C;

Pressure Range: 0-20 bar;

Pressure drop:

ΔP(bar)/The medium is water



1.6 <1
2.5 <1
5 4.5

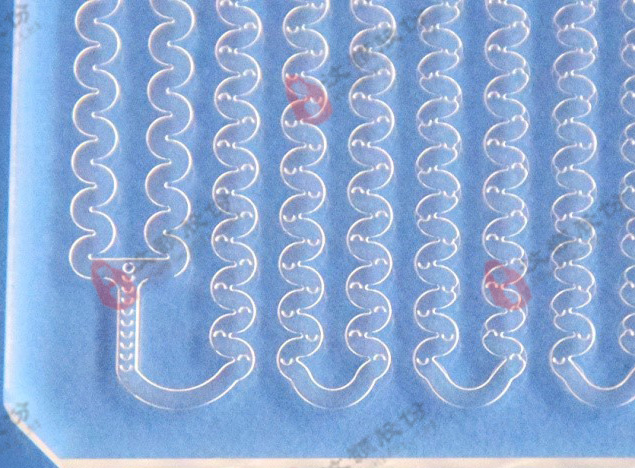

Purpose: process-enhanced micro-reactor, while taking into account a very high versatility, built-in vortex bow, a fast reaction can be applied to slow reaction, a slow reaction in series SU684-H reaction module can be used to get good results.
