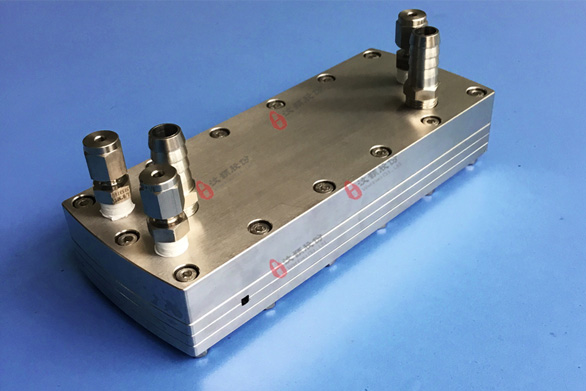

Wh-IND MIXER-M2 micromixer

Wenhao provides stainless steel micromixers from laboratory process development to mass production.

Microreactor applications: pharmaceutical intermediates, drug synthesis, fine chemicals, pesticide chemistry, special, chemicals, commodity industry, nanomaterials, pharmaceutical preparations, polymer modification, etc. . Chemical, commodity industry, nano-materials, pharmaceutical preparations, polymer modification, etc.

Wh-IND MIXER-M2 stainless steel micromixer technical parameters:

Dimensions: 70 × 170 × 35 mm or 70 × 170 × 45 mm;

Layer number: 4 including 1 × process layer, 2 × heat exchange layer, 1 × sealing layer

Material: 316L SS, Ta1(customizable HC-276, HB-2, Monel 400)

Channel size: depth × width = 0.2 × 4 mm;

Packing size: length × width × height = 2.2 × 1 × 1mm;

Flow path length: 0.171 m;

Process side holding capacity: 0.069 ml;

Heat transfer measurement holding capacity: 11.76 ml;

Recommended temperature of process side:-25 °C ~ 230 °C;

Recommended temperature on heat transfer side:-40 °C ~ 260 °C;

Design pressure of process side: ≤10MPa

Recommended pressure for process side: 0-7 MPA (- 25 ~ 100 °C) ; 0-4 MPA (100 ~ 200 °C) ; 0-2 MPA (200 ~ 230 °C) ; recommended pressure for heat transfer side: 0-3 Bar



Recommended flow rate on process side: 0.01-100mL/min;

The recommended flow rate on heat transfer side: 0-5 L/min;

Dimensions of process side joints: MUNF 1/4-28 or MNPT 1/8-27

Dimensions of heat transfer side joints: MNPT 1/4-18 or ZG 1/4-19

Temperature sensor: PT100

Dimensions of sensor probe: Φ2

Bolt size: M4

Purpose: it is suitable for mixing processes with drastic energy change and can also be used for general-purpose process mixing

Wenhao can also cooperate with customers to produce customized micromixer products!
