WH-CF-06 Ctype hard chip holder

Product introduction

The C-type fixture provides a fast and reliable connection with fixed-thickness microfluidic chips. The C-type fixture is used with a range of fixed-thickness chips. Customers can order or customize the chip using a C-type fixture, to complete a series of micro-flow control unit operations, including droplet formation, multi-layer droplet formation, solution mixing, and so on.

Microfluidic hard chip C-type fixture, assembly step 2

Points to note

1) one single holder can only be used for chips in fixed thickness;

• before the experiment, test whether the fixture leakage, if leakage, adjust the washer, tighten the peek joint until no leakage.

Advantage of using C-type fixture

1) easy connection, avoiding the use of glue adhesive;

2) easy to shift and observe;

3) reusable;

4) lower costs.

Specifications

Specifications

Account for

Connecting pipe dimensions

Outer diameter 1.6 mm

Connecting material

PTFE

Pressure tolerance range

10bar

Temperature tolerance

Based on the chip material,

dead volume

< 0.3 μl per tube

Standard components and accessories

Component fittings

Quantity

Peek Junction

1

O-ring

2 tablets

PTFE pipe

2m

Complete fixture

Product introduction

The C-type fixture provides a fast and reliable connection with fixed-thickness microfluidic chips. The C-type fixture is used with a range of fixed-thickness chips. Customers can order or customize the chip using a C-type fixture, to complete a series of micro-flow control unit operations, including droplet formation, multi-layer droplet formation, solution mixing, and so on.

Advantage of using C-type fixture

1) easy connection, avoiding the use of glue adhesive;

2) easy to shift and observe;

3) reusable;

4) lower costs.

Specifications

Assembly process

1. Assembly materials

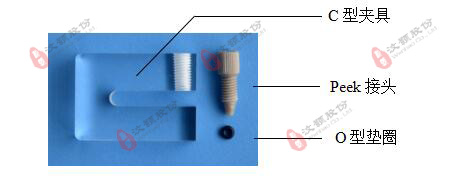

1. Microfluidic hard chip type C fixture, assembly material

Assembly steps

1) insert the chip into the C-type fixture, place the washer at the interface, and align the washer with the hole punched by the chip;

Microfluidic hard chip C-type fixture, assembly step 1

2) screw the peek connector into the interface, insert the tube into the peek connector, and assemble the clamp.
