WH-PMPP-12 12Channels Microfluidic Positive And Negative Constant Pressure Pump

WH-PMPP-12 constant pressure pump is a self-developed 12-channel fluid control system developed by Wenhao Co.,LTD. The system mainly consists of 10 positive pressure control channel switches and 2 negative pressure control channel switches. The system is programmable, high precision, stable performance, strong anti-interference ability, etc. It is widely used in long-term controlled gas, liquid delivery field, suitable for microfluidic chip injection, chemical reaction injection and prolonged drug injection Other fields. Instrument equipped with large touch screen, the operation is more simple and convenient. At the same time with the shares of independent research and development of Wenhao Co.,LTD control software, but also through the computer control equipment.

WH-PMPP-12 constant pressure pump mainly through the pressure regulating valve for gas pressure control, you can independently control the 12-channel switch and internal gas pressure, and gas pressure control fluid flow or flow rate.

Constant pressure pump parameters:

Dimensions: 350 × 300 × 110mm;

Weight: 3kg;

Display: 7-inch touch screen;

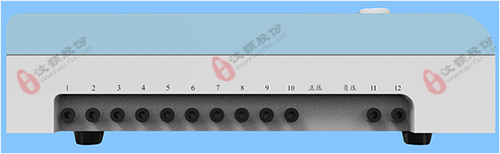

The number of channels: 10 positive pressure channel +2 negative pressure channel;

Channel control points: 12;

Control mode: the opening and closing time of each channel can be controlled separately;

Cycle times: 0 ~ 65535 times;

Duration of the range: 0.0 ~ 6553.5s;

Positive pressure range: 0 ~ 0.7Mpa;

Negative pressure range: -100 ~ -1Kpa;

Pressure accuracy: 0.001Mpa;

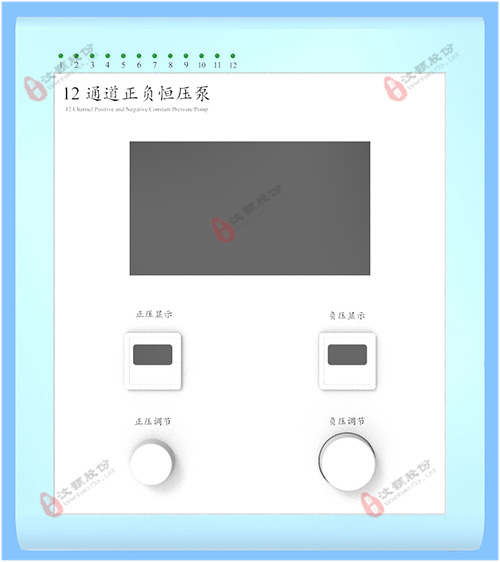

Dual pressure display table, dual pressure regulator. (Left pressure display and pressure regulator control display on the left of the 10-channel positive pressure, the right pressure display and pressure regulator valve control display 2 channel negative pressure on the right);

Key life: one million times or so;

Power: DC24V DC;

Temperature range: 5 ~ 50 ℃;

Humidity range: 20 ~ 80%;

Computer configuration: software operating platform Win7 operating system.
